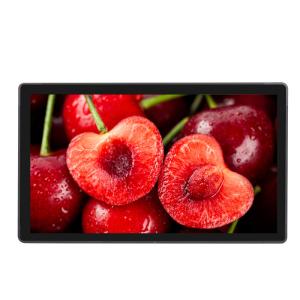

Pure Plat LCD PCAP Touch Monitor 27 Inch Dust Proof Anti Vandal

Brand Name : KeeTouch

Model Number : KOT-270P-006(KOT-0270U-CA2P)

Certification : FCC, CE, CB, RoHS,UL,BIS

Place of Origin : Shenzhen, China

MOQ : 1piece

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10000 Pieces per Week

Delivery Time : 7-15 work days

Packaging Details : Carton

Response Time (Typ.) : 12ms

Display Type : 16:9 Ratio 27" TFT-LCD,LED backlight

Support Colors : 16.7M

Video Input : VGA/DVI/HDMI

Frequency (H/V) : 30~80KHz / 50~75Hz

LED Back Light Life (Typ.) : ≥30,000 Hours

Support System : XP,WIN7,WIN8,WIN10,Linux,Android

Light Transmittance : ≥85%

Product name : PCAP Touch Monitor

Warranty : one year

Contact Now

27 Inch PCAP Touch Monitor Pure Plat Design 3000:1 Contrast Ratio

PCAP Touch Monitor Main Features

  • PCAP multi-touch screen, accurate touch and fast response
  • Dust-proof and anti-vandal PCAP touch monitor with full viewing angle
  • 3000:1 high contrast ratio, high clarity image with high definition visual enjoyment
  • Pure flat designed PCAP touch monitor with IP65 front side waterproof
  • Support system: Windows7
  • VGA/DVI/DHMI interfaces, USB for touch input
  • Multiple mounting options include VESA mount, horizontal vertical brackets mount
  • Other sizes are available (7’’-43’’)

PCAP Touch Monitor Specifications

Complete Machine
Model No. KOT-0270U-CA2P (P/N:KOT-270P-006)
Series OT
Display Type 16:9 Ratio 27" TFT-LCD,LED backlight
Active Area 599.3*337.8(mm)
Monitor Dimensions (W*H*D) 655.9*394.4*48.5(mm)
Suggested Resolution 1920*1080 @ 60Hz
Support Colors 16.7M
Brightness (Typ.) Pure LCD Panel 300cd/m2
With Touch Monitor 250cd/m2
Response Time (Typ.) 12ms
Viewing Angle(Typ.at CR>10)) Horizontal(left/right) 89°/89°
Vertical(up/down) 89°/89°
Contrast Ratio (Typ.) 3000:1
Video Input VGA/DVI/HDMI
Frequency (H/V) 30~80KHz / 50~75Hz
Power Supply Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. 0~50°C
Operating RH 20%~80%
Storage Temp. -20~60°C
Storage RH 10%~90%
MTBF ≥30,000 Hours
LED Back Light Life (Typ.) ≥30,000 Hours
Power Consumption Standby Power: ≤2W / Operating Power: ≤35W
Mount Interface 1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Touch Type 27" Capacitive screen
Touch input USB
Support System XP,WIN7,WIN8,WIN10,Linux,Android
Agency approvals CCC, UL, FCC, CE, CB, RoHS
Regular Warranty 1 year

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

PCAP Touch Monitor Mechanical Dimensions

Pure Plat LCD PCAP Touch Monitor 27 Inch Dust Proof Anti Vandal

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

Pure Plat LCD PCAP Touch Monitor 27 Inch Dust Proof Anti Vandal

FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.

5. What is your payment method?

We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )

6. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
